国产分体式Carina手术机器人甲状腺切除术的可行性和安全性

doi:10.3877/cma.j.issn.1674-6899.2025.05.007

目的

评价国产分体式Carina™手术机器人应用在甲状腺手术的可行性和安全性。

方法

这是一项前瞻性、单臂临床研究。前期在猪和尸体验证可行性后，青岛大学附属烟台毓璜顶医院招募了8例诊断为甲状腺乳头状癌的患者，使用Carina™手术机器人进行甲状腺手术。根据手术结果评估可行性和安全性。

结果

2025年5月至7月共8例患者接受了Carina™系统机器人辅助腔镜甲状腺癌根治术，其中7例为无充气经腋窝入路，1例为双侧腋窝双侧乳晕入路。无患者中转为常规腔镜手术或开放手术，平均系统准备时间11.75±5.26 min，平均遥操作时间111.88±25.45 min，平均总手术时间194.38±27.83 min。主刀医师平均生理负荷评分1.75±2.92分，平均心理负荷评分21.13±10.45分，均随着手术例数增加呈现明显下降趋势。平均取得淋巴结6.38±2.77枚，平均转移淋巴结数量0.88±1.73枚。术后随访至少2个月，无严重并发症出现。

结论

本研究初步证明了分体式手术机器人系统在甲状腺手术的应用是可行且安全有效的。

关键词: Carina?手术机器人系统, 机器人辅助, 无充气经腋窝入路, 双侧腋窝双侧乳晕入路(BABA入路), 甲状腺

Objective

This study evaluates the feasibility and safety of modular Carina surgical robot system for thyroidectomy.

Methods

In this prospective single-arm trial, 8 patients with papillary thyroid carcinoma were enrolled at Yantai Yuhuangding Hospital following pig and cadaver feasibility studies. Carina™ was used to perform robotic thyroidectomy, with outcomes assessing system feasibility and safety.

Results

Between May 2025 and Jul. 2025, all 8 subjects successfully underwent robot-assisted endoscopic thyroid cancer surgery using Carina™: 7 via gasless axillary approach and 1 via bilateral axillo-breast approach (BABA), with no conversions to laparoscopy or open surgery. The average system preparation time was 11.75±5.26 minutes, the average remote operation time was 111.88±25.45 minutes, and the average total operation time was 194.38±27.83 minutes. The system preparation time, remote operation time, and total operation time all showed a stable downward trend. The average physiological load score of the lead surgeon was 1.75±2.92 points, and the average psychological load score was 21.13±10.45 points. Both the physiological load and psychological load scores showed a significant downward trend as the number of surgeries increased. An average of 6.38 ± 2.77 lymph nodes were obtained, and an average of 0.88±1.73 metastatic lymph nodes were present. Postoperative follow-up was conducted for at least 2 month, and no serious complications was observed.

Conclusion

This study demonstrates for the first time that modular robotic thyroidectomy using Carina™ is feasible, safe, and effective.

Key words: Carina? surgical robot system, Robot-assisted, Non-inflated transaxillary approach, Bilateral axillo-breast approach (BABA), Thyroid

图1 无充气腋窝入路切口位置标记

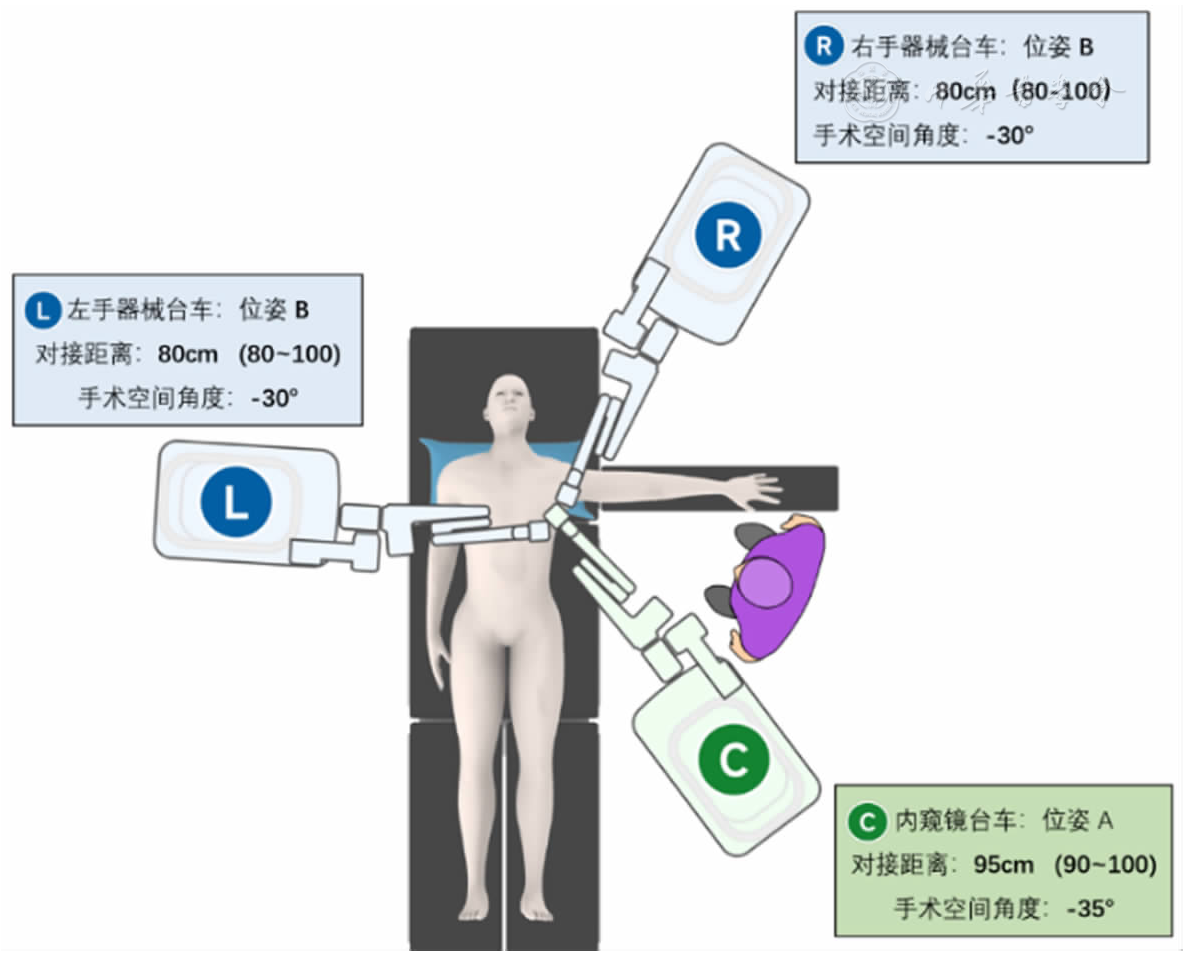

图2 无充气腋窝入路患者推车的具体位置和设置参数

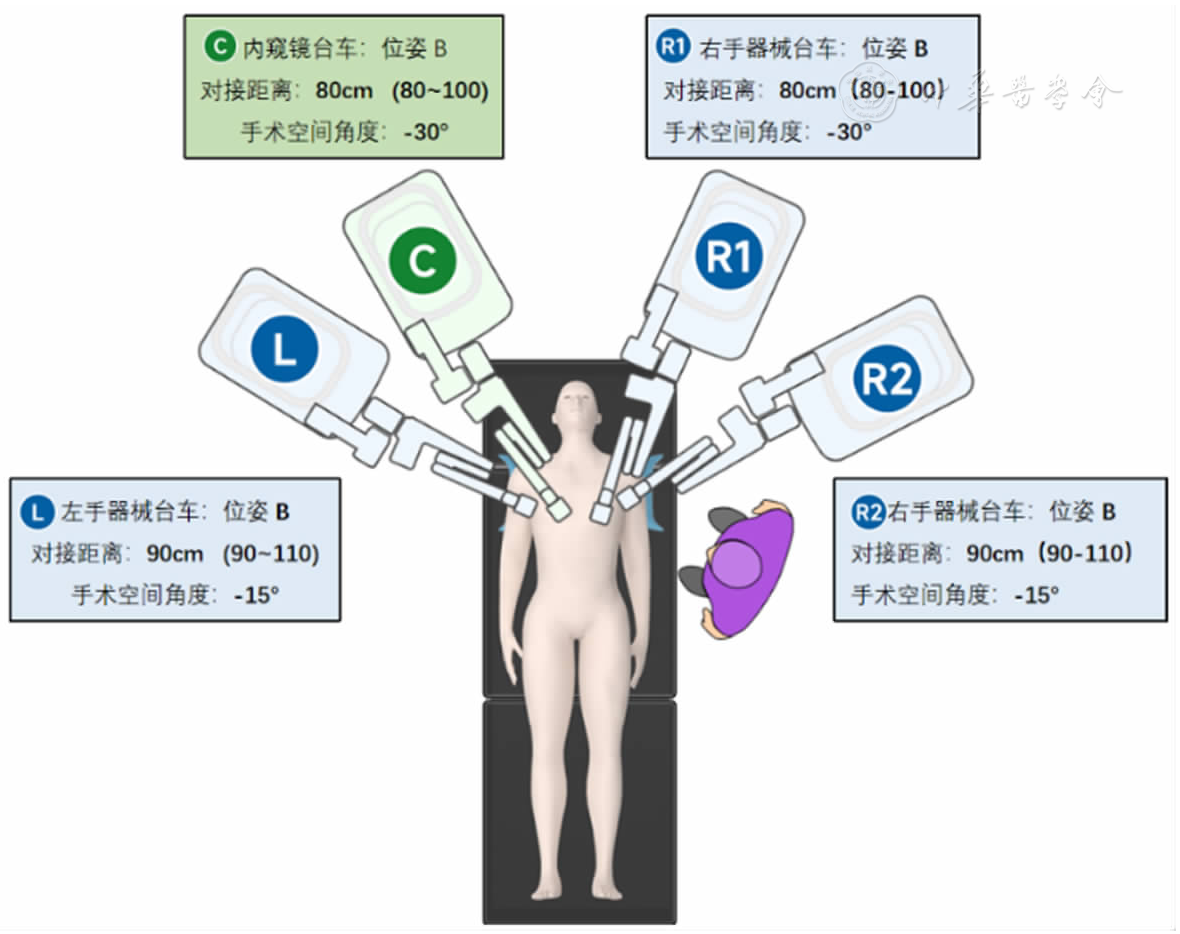

图3 双侧腋窝双侧乳晕(BABA)入路患者推车的具体位置和设置参数

表1 患者基本特征

指标	均数±标准差或例数	范围或%
性别
女	8	100%
男	0	0%
年龄(岁)	45.00±11.00	(30~58)
BMI(kg/m²)	25.08±3.19	(21.48~29.72)
合并桥本病
是	4	50%
否	4	50%
肿瘤位置
左侧	5	62.50%
右侧	2	25%
峡部	1	12.50%
手术入路
无充气腋窝入路	7	87.50%
BABA入路	1	12.50%

表1 患者基本特征

指标	均数±标准差或例数	范围或%
性别
女	8	100%
男	0	0%
年龄(岁)	45.00±11.00	(30~58)
BMI(kg/m²)	25.08±3.19	(21.48~29.72)
合并桥本病
是	4	50%
否	4	50%
肿瘤位置
左侧	5	62.50%
右侧	2	25%
峡部	1	12.50%
手术入路
无充气腋窝入路	7	87.50%
BABA入路	1	12.50%

表2 术中和围手术期结果

指标	均数±标准差或例数	范围或%
系统准备时间(min)	11.75±5.26	(7~21)
系统操作时间(min)	111.88±25.45	(82~151)
手术时间(min)	194.38±27.83	(150~230)
主刀医师术中生理负荷(分)	1.75±2.92	(0~8)
主刀医师术中心智负荷(分)	21.13±10.45	(6~36)
术中失血量(ml)	8.75±2.31	(5~10)
术后引流量(ml)	125.63±61.52	(65~259)
术后住院天数(d)	3.00±0.53	(2~4)
术后疼痛评分(分)
1 d	1.25±1.04	(0~2)
4 d	1.75±1.67	(0~4)
30 d	0.75±1.49	(0~4)
肿瘤大小(cm)	0.85±0.32	(0.5~1.3)
侵犯被膜
是	5	62.50%
否	3	37.50%
病理类型
经典型	5	62.50%
滤泡亚型	2	25%
经典型＋滤泡亚型	1	12.50%
转移淋巴结数(枚)	0.88±1.73	(0~5)
取得淋巴结数(枚)	6.38±2.77	(2~11)
2015 ATA复发危险分层
低危	7	87.50%
中危	1	12.50%

表2 术中和围手术期结果

指标	均数±标准差或例数	范围或%
系统准备时间(min)	11.75±5.26	(7~21)
系统操作时间(min)	111.88±25.45	(82~151)
手术时间(min)	194.38±27.83	(150~230)
主刀医师术中生理负荷(分)	1.75±2.92	(0~8)
主刀医师术中心智负荷(分)	21.13±10.45	(6~36)
术中失血量(ml)	8.75±2.31	(5~10)
术后引流量(ml)	125.63±61.52	(65~259)
术后住院天数(d)	3.00±0.53	(2~4)
术后疼痛评分(分)
1 d	1.25±1.04	(0~2)
4 d	1.75±1.67	(0~4)
30 d	0.75±1.49	(0~4)
肿瘤大小(cm)	0.85±0.32	(0.5~1.3)
侵犯被膜
是	5	62.50%
否	3	37.50%
病理类型
经典型	5	62.50%
滤泡亚型	2	25%
经典型＋滤泡亚型	1	12.50%
转移淋巴结数(枚)	0.88±1.73	(0~5)
取得淋巴结数(枚)	6.38±2.77	(2~11)
2015 ATA复发危险分层
低危	7	87.50%
中危	1	12.50%

图4 术后1个月主切口情况注：A.腋前线切口术后1个月愈合情况；B.腋窝褶皱切口术后1个月愈合情况

图5 术中情况的相关数据注：A.系统准备时间；B.系统操作时间；C.手术时间(切皮-缝合时间)；D.手术中主刀医师局部不适体验量表评分；E.主刀医师术中主管心智负荷量表评分

1	宋景双，杜勇，黄颖，等. 甲状腺乳头状癌临床特征及颈部淋巴结转移相关危险因素分析[J]. 中国当代医药，2024, 31(2): 70-74.
2	Miller KD, Fidler-Benaoudia M, Keegan TH, et al. Cancer statistics for adolescents and young adults, 2020[J]. CA Cancer J Clin, 2020, 70(6)：443-459.
3	Alkatout I, Salehiniya H, Allahqoli L. Assessment of the versius robotic surgical system in minimal access surgery: a systematic review[J]. J Clin Med, 2022, 11(13)：3754.
4	Park J, Kim K. Current and future of robotic surgery in thyroid cancer treatment[J]. Cancers (Basel), 2024, 16(13)：2470.
5	Kang SW, Jeong JJ, Nam KH, et al. Robot-assisted endoscopic thyroidectomy for thyroid malignancies using a gasless transaxillary approach[J]. J Am Coll Surg, 2009, 209(2)：e1-e7.
6	Al Juhani AA, Alzahrani F, Esmail AK, et al. Efficacy and safety of robotic bilateral axillo-breast approach versus robotic gasless axillary approach for thyroidectomy: a systematic review and meta-analysis[J]. Surg Laparosc Endosc Percutan Tech, 2025, 35(3)：e1370. DOI: 10.1097/SLE.0000000000001370. PMID: 40237278.
7	Zhang X, Yu J, Zhu J, et al. A meta-analysis of unilateral axillary approach for robotic surgery compared with open surgery for differentiated thyroid carcinoma[J]. PLoS One, 2024, 19(4)：e0298153.
8	Zhang R, Chen Y, Deng X, et al. Comparison of bilateral axillo-breast approach robotic thyroidectomy and open thyroidectomy for papillary thyroid carcinoma[J]. J Robot Surg, 2023, 17(5)：1933-1942.
9	Albazee E, Abdelaziz A, Alabdulhadi R, et al. Bilateral axillo-breast approach robotic thyroidectomy (BABA-RT) versus transoral robotic thyroidectomy (TORT): a systematic review and meta-analysis[J]. Updates Surg, 2023, 75(5)：1277-1287.
10	Martino B, Nitro L, De Pasquale L, et al. Conversion rates in robotic thyroid surgery: a systematic review and meta-analysis[J]. Int J Med Robot, 2022, 18(5)：e2427.
11	Xing Z, Qiu Y, Abuduwaili M, et al. Surgical outcomes of different approaches in robotic assisted thyroidectomy for thyroid cancer: a systematic review and Bayesian network meta-analysis[J]. Int J Surg, 2021, 89：105941.
12	Liu H, Wang Y, Wu C, et al. Robotic surgery versus open surgery for thyroid neoplasms: a systematic review and meta-analysis[J]. J Cancer Res Clin Oncol, 2020, 146(12)：3297-3312.
13	张彬，韩宗辉，Rai Bikash. 经口腔达芬奇机器人甲状腺手术初步经验[J/OL]. 中华腔镜外科杂志(电子版), 2018, 11(4)：234-237.
14	Grochola LF, Soll C, Zehnder A, et al. Robot-assisted single-site compared with laparoscopic single-incision cholecystectomy for benign gallbladder disease: protocol for a randomized controlled trial[J]. BMC Surg, 2017, 17(1)：13.
15	万丽，赵晴，陈军，等. 疼痛评估量表应用的中国专家共识(2020版). 中华疼痛学杂志，2020, 16(3): 177-187.
16	Dindo D, Demartines N, Clavien PA. Classification of surgical complications: a new proposal with evaluation in a cohort of 6336 patients and results of a survey[J]. Ann Surg, 2004, 240(2)：205-213.
17	史荣亮，张婷婷，王宁，等. 达·芬奇Xi机器人在单侧腋窝入路免充气甲状腺手术中的临床应用分析. 中国癌症杂志，2023, 33(11): 1018-1025.
18	田文，贺青卿，朱见，等. 机器人手术系统辅助甲状腺和甲状旁腺手术专家共识[J]．中国实用外科杂志，2016, 36(11)：6.
19	Cowan B, Gomes C, Morris P, et al. Robotic technology in surgery; a classification system of soft tissue surgical robotic devices[J]. Surg Endosc, 2024, 38(7)：3645-3653.
20	张可欣，孙大为，任常. 国产单孔蛇形臂腹腔镜机器人在妇科领域的应用探索[J/OL]. 中华腔镜外科杂志(电子版), 2024, 17(2): 106-110.
21	刘洋，方芳，李莹，等. 国产单孔手术机器人辅助vNOTES治疗妇科良性疾病[J/OL]. 中华腔镜外科杂志(电子版), 2024, 17(4)：234-238.
22	Andras I, Piramide F, Bravi CA, et al. Systematic review and clinical outcomes of new robotic systems in urology[J]. Int Braz J Urol, 2025, 51(4)：e20250007.
23	Glass Clark S, Shepherd JP, Sassani JC, et al. Surgical cost of robotic-assisted sacrocolpopexy: a comparison of two robotic platforms[J]. Int Urogynecol J, 2023, 34(1)：87-91.
24	Liu Y, Zhao Z, Xu P, et al. Initial experience with the Carina™ platform in robotic-assisted hysterectomy for gynecological malignant disease[J]. Surg Endosc, 2025, 39(4)：2346-2353.
25	Pokhrel G, Wang Z, Cui J, et al. Initial experience with the novel modular robotic system Carina in urology: a prospective study on safety feasibility and surgical settings[J]. Sci Rep, 2025, 15(1)：12686.
26	Bianchi PP, Salaj A, Rocco B, et al. First worldwide report on Hugo RAS™ surgical platform in right and left colectomy[J]. Updates Surg, 2023, 75(3)：775-780.
27	Gangemi A, Bernante P, Rottoli M, et al. Surgery of the alimentary tract for benign and malignant disease with the novel robotic platform HUGOTM RAS. A first world report of safety and feasibility[J]. Int J Med Robot, 2023, 19(4)：e2544.
28	Caputo D, Cammarata R, Farolfi T, et al. First worldwide report on rectal resections with Hugo™ surgical system: description of docking angles and tips for an effective setup[J]. ANZ J Surg, 2024, 94(7-8)：1299-1304.
29	Romero-Marcos JM, Sampson-Dávila JG, Cuenca-Gómez C, et al. Colorectal procedures with the novel Hugo™ RAS system: training process and case series report from a non-robotic surgical team[J]. Surg Endosc, 2024, 38(4)：2160-2168.
30	Ferri V, Vicente E, Quijano Y, et al. Earlier experience of robotic inguinal hernia repair with the new Hugo™ robotic system in Europe[J]. J Abdom Wall Surg, 2025, 4：13880.
31	Anagani M, Ganga RS, Paritala S. Robotics-assisted surgery in gynecology: A single-center experience with the Hugo™ RAS system in India[J]. Womens Health (Lond), 2025, 21：17455057241302581.
32	Mottaran A, Paciotti M, Bravi CA, et al. Robot-assisted simple prostatectomy with the novel HUGO™ RAS System: feasibility, setting, and perioperative outcomes[J]. Minerva Urol Nephrol, 2023, 75(2)：235-239.
33	Papini P, De Palma A, Ginesini M, et al. Robot-assisted transaxillary surgery for thyroid cancer: oncologic and surgical outcomes in long term follow-up[J]. Int J Med Robot, 2023, 29：e2563.
34	Materazzi G, Fregoli L, Papini P, et al. Robot-assisted transaxillary thyroidectomy (RATT): a series appraisal of more than 250 cases from Europe[J]. World J Surg, 2018, 42(4)：1018-1023.
35	Tae K, Ji YB, Cho SH, et al. Early surgical outcomes of robotic thyroidectomy by a gasless unilateral axillo-breast or axillary approach for papillary thyroid carcinoma: 2 years' experience[J]. Head Neck, 2012, 34(5)：617-625.
36	Sun B, Yu S, Ge J, et al. Analysis of scene-guided camera assistance in transaxillary gasless endoscopic thyroidectomy: a minor improvement in operative technique[J]. Front Endocrinol (Lausanne), 2023, 14：1146336.
37	Kang SW, Lee SC, Lee SH, et al. Robotic thyroid surgery using a gasless, transaxillary approach and the da Vinci S system: the operative outcomes of 338 consecutive patients[J]. Surgery, 2009, 146(6)：1048-1055.
38	Kang SW, Jeong JJ, Yun JS, et al. Robot-assisted endoscopic surgery for thyroid cancer: experience with the first 100 patients[J]. Surg Endosc, 2009, 23(11)：2399-2406.
39	Wu H, Zhu M, Ma C, et al. Transaxillary vs. transsubclavian gasless endoscopic thyroidectomy approaches for papillary thyroid cancer[J]. Sci Rep, 2025, 15(1)：215.
40	Zheng G, Xu J, Wu G, et al. Transoral versus gasless transaxillary endoscopic thyroidectomy: a comparative study[J]. Updates Surg, 2022, 74(1)：295-302.
41	Arroyo A, Sánchez-Romero A, Soler-Silva á，et al. Utility guideline and considerations for the novel Hugo™ RAS (robotic-assisted surgery) system in colorectal surgery: surgical outcomes and initial experience in a tertiary center[J]. Int J Colorectal Dis, 2024, 39(1)：144.
42	Itatani Y, Hida K, Okamura R, et al. Initial clinical experience of robot-assisted rectal surgery by using Hugo RAS system: horizontal line port placement with contralateral reserve arm manipulation[J]. Asian J Endosc Surg, 2025, 18(1)：e70099.
